Robot protective system-intelligent climate controlling
Introduction Device Industry Point Solution Process Material Advantage Detail Protective Case
product / 02
Robot protective system-intelligent climate controlling

The patented product is composed of protective clothing, temperature control system, ventilation pipe and pressure system. The clothing adopts multi-layer structure to ensure the heat insulation effect; the control system can be connected with the communication system of the robot.
The applicable ambient temperature range is - 40 ~ 70 ℃, with intelligent temperature regulation, remote monitoring, anti leakage protection and other functions.
It can be used in the cold storage of aquatic products, low temperature preservation, pharmaceutical factories, cold areas in the north, tropical areas and other extreme high and low temperature environments.



  • Heat-resisting
  • Cold-resistant
  • Insulation
  • Ventilation
Application Type
1
2
Application industry
Climate simulation laboratory
  • Cold storage
  • Low temperature preservation
  • Pharmaceutical factory
  • Metalworking
  • Smelting industry
  • Spare parts
User pain point
  • Existing Problems
    Extreme low temperature
    Extreme high temperature
    Lubricant solidification
    Motor overheating
  • User loss
    Robot stop
    Equipment failure
    Motor damage
    Line down
solution

Product development process

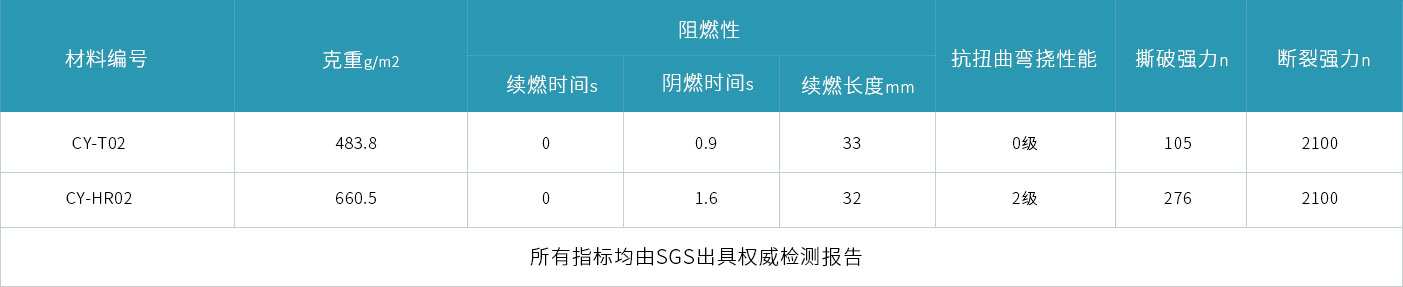

Material parameters
  • Imported high temperature resistant coating materials
    The material is cold resistant and heat-resistant, with the B1 level of fire resistance; it has good bending resistance, good flexibility in harsh environment, and is not easy to wear out. Combined with the insulation layer, the outer layer has high strength and the inner layer has good heat storage performance.
  • Flame retardant elastic belt
    It has good flame retardancy, high strength, elongation ratio over 1:2.5, and is not easy to produce fatigue under the long-term action of external force.
  • Temperature control system
    There are cooling mode, heating mode, water removal mode, etc. In order to realize the function of temperature control, it is necessary to heat up in low temperature environment and cool down in high temperature environment.
  • Ventilating duct
    Good low temperature flexibility, wear resistance, surface resistivity less than 10 ^ 9 Ω, no pollution.


Design advantage
Digital remote design
  • No field measurement required
  • High precision design
  • Short supply cycle
  • Only 2D & 3D digital analog, on-site video and pipeline trend are required.
Product details
  • Base pendulum
    A large skirt is arranged at the place with a large movement amplitude of the first axis, so that the space increases after inflation and does not interfere with the operation of the robot.
  • Elastic structure at connecting rod
    The lateral elastic ring binds the protective clothing to avoid excessive expansion due to internal air pressure.
  • Pipeline hanging buckle
    A pipeline hanging buckle is added at the lower end of the arm to facilitate the fixation of the pipeline.
  • Six axis end closure
    The protective clothing is fixed on the robot by the double closing way of elastic belt and tie belt to prevent the exchange of internal and external gas from affecting the temperature control effect.
Protective effect
High quality + safety Escort + intimate service = spring rain protection
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.
  • Protection function
    Intelligent temperature rise and fall
    Remote monitoring
    Protect equipment from damage
  • Product value
    Expand the scope of equipment
    Reduce production stop rate
    Expand robot coverage
Successful case
智能控温机器人防护系统将机器人的运行温度范围从5~45℃拓展至-90~+120℃，可有效解决寒冷地区冬季和热带地区夏季生产线面临停产的问题。
Huiyue
Huiyue
3
