Robot dust jacket
Introduction Device Industry Point Solution Process Material Advantage Detail Protective Case
product / 09
Robot dust jacket

High quality materials with wear resistance, high strength, high density and anti water splashing are selected.
The product can prevent dust, water vapor and other small floating objects from entering the main body of the robot.
It is mainly used in grinding, thermal spraying, food processing, chemical industry and other industries with dust generation.



  • Dust prevention
  • Water repellent
  • Stain prevention
  • Wear resistance
Application Type
Robot Palletizer
Handling robot
Application industry
Grinding process
  • Handling operation
  • Thermal spraying
  • Automobile manufacturing
  • Food processing
  • Chemical industry
  • Spare parts
User pain point
  • Existing Problems
    Dusty
    Fine particles
    High working frequency
    Heavy equipment load
  • User loss
    Reduced sensitivity
    Reduced accuracy
    Production quality reduction
    High maintenance costs
solution

Product development process

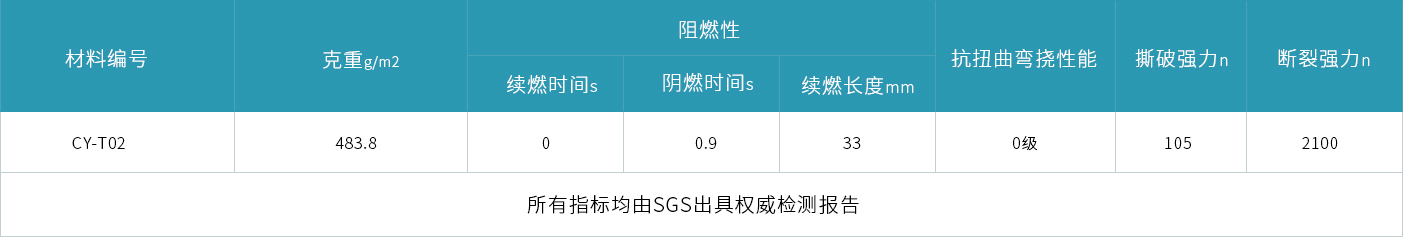

Material parameters
  • High density film covering material
    The structure is compact, which can effectively prevent the passing of small particles; the mechanical properties are excellent, and the tearing strength and breaking strength of the material are far greater than the general functional fabric; the anti twisting and bending performance is good, which can meet the high frequency repetitive work of the robot without damage.
  • Velcro
    The buckle has high strength, good tear resistance and strong viscosity.
  • High elastic elastic elastic belt
    It has high strength and elongation ratio of more than 1:2.5. It is not easy to produce fatigue under the long-term action of external force and has high elastic recovery rate.
  • Flame retardant sewing thread
    The suture is made of Kevlar 1414 fiber, which has high strength, good toughness and can effectively enhance the suture strength.


Design advantage
Digital remote design
  • No field measurement required
  • High precision design
  • Short supply cycle
  • Only 2D & 3D digital analog, on-site video and pipeline trend are required.
Product details
  • Base skirt
    A large skirt is arranged between the robot base and the first axis, which can effectively prevent dust from entering the robot from the joint and has aesthetic function.
  • Elastic structure
    The transverse elastic ring is set at the joint and the longitudinal elastic strip is set at the connecting rod to fully meet the movement range of the robot and avoid interference.
Protective effect
High quality + safety Escort + intimate service = spring rain protection
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.
  • Protection function
    Prevent dust accumulation
    Block small particles
    Reduce equipment friction
  • Product value
    Extend service life of equipment
    Improve the sensitivity of equipment
    Increase the beauty of the equipment
Successful case
With the enhancement of end-users' awareness of equipment maintenance, robot dust-proof clothing has been widely used in all walks of life, such as Beize precision machinery, Furui intelligent equipment, Fanghe electric machinery and other enterprises. The product has exquisite technology, good protective performance, long service life and high praise.
Fang He motor
Beize precision machinery
Fu Rui intelligence
